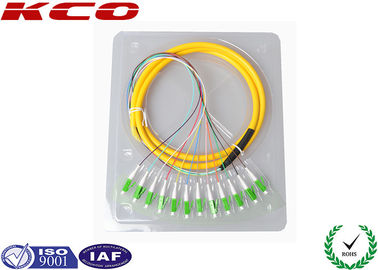

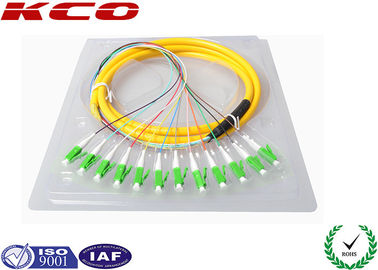

LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors
| Place of Origin | Guangdong, China |
|---|---|
| ब्रांड नाम | KCO |
| प्रमाणन | ISO9001, RoHS |
| Model Number | LCA-12fo-fanout-1.5m |
| Minimum Order Quantity | Negotiation |
| मूल्य | negotiable |
| Packaging Details | PE bag, carton box, wooden roll |
| Delivery Time | 2~5 days after get payment |
| भुगतान शर्तें | वेस्टर्न यूनियन, टी/टी, एल/सी |
| Supply Ability | 900,000pcs/month |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| योजक | एलसी/एपीसी | मुख्य | 12 कोर |
|---|---|---|---|
| ढकना | एलएसजेडएच, ... | केबल लंबाई | 1.5मी |
| पंखे की लंबाई | 30 मिमी | केबल व्यास | 4.2 मिमी |
| प्रमुखता देना | fibre optic patch cable,patch cord pigtail |
||
उत्पाद विवरण
LC APC Optical Fiber Single Pigtail
High-performance LC APC fiber optic pigtails designed for reliable connectivity in various telecommunications and networking applications.
Quick Specifications
Connector:
LC/APC 0.9mm
Connector boot color:
White or green
Fiber number:
12 cores
Accessories:
Fanout
Diameter:
4.2mm
Length:
1.5m
Fanout length:
30cm
IL:
0.15dB
RL:
55dB
Mode:
Single mode 9/125
Cover:
PVC
Cable color:
Yellow
Product Images
Applications
- CATV (Cable Television)
- Telecommunication networks
- Computer fiber networks and fiber test equipment
- Communication rooms
- FTTH (Fiber to The Home)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Key Characteristics
- Low insertion loss
- High return loss
- Good repeatability
- Good interchange
- Excellent environmental adaptability
Product Description
LC fiber optic pigtails are available in single mode UPC APC and multimode PC configurations. The cable number can be simplex, duplex or multi-fiber fan out/break out. Available cable diameters include 0.9mm, 2.0mm, 3.0mm, 4.2mm, and more.
About Fiber Optic Patch Cables
A fiber optic patch cable is a fiber optic cable capped at either end with connectors that allow rapid and convenient connection to CATV, optical switches, and other telecommunications equipment. The thick protective layer is designed to connect optical transmitters, receivers, and terminal boxes.
Single Mode Cables
Single Mode fiber optic cable features a small diametral core that allows only one mode of light to propagate. This reduces light reflections, lowers attenuation, and enables signals to travel longer distances. Typically used in long-distance, high-bandwidth applications by telecommunications companies, CATV providers, and educational institutions.
Multi Mode Cables
Multimode fiber optic cable has a large diametral core that allows multiple modes of light to propagate. This increases data transmission capacity but results in higher dispersion and attenuation over long distances. Commonly used for short-distance data and audio/video applications in LANs.
Multi-mode Fiber Types
Multi-mode fibers are described by their core and cladding diameters, typically 50/125 µm or 62.5/125 µm. Current multi-mode fiber categories include OM1, OM2, OM3, and OM4, each with specific performance characteristics and applications.
Technical Specifications
| Type | Standard, Master |
|---|---|
| Connector Style | LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Single mode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125 10G (Multimode) OM3 G652 (all type), G657(all type), G655(all type) |
| Cable Type | Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ0.9mm Buffered fiber |
| Cable Cover material | PVC, LSZH, Armored, Water-proof, FTTH, Outdoor |
| Return Loss (Single mode) | ≤ 0.15dB (Master) ≤ 0.30dB (Standard) ≤ 0.30dB (Multi mode) Tested by JDS RM 3750 UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40°C to 85°C |
Packing
According to Standard Export Packing. Carton box, wooden box, wooden pallet.
Shipping Options
- International express: UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding options available for cables, packaging bags, labels, and other components. Display your own logo on our products.
